Pinnacle Performance.

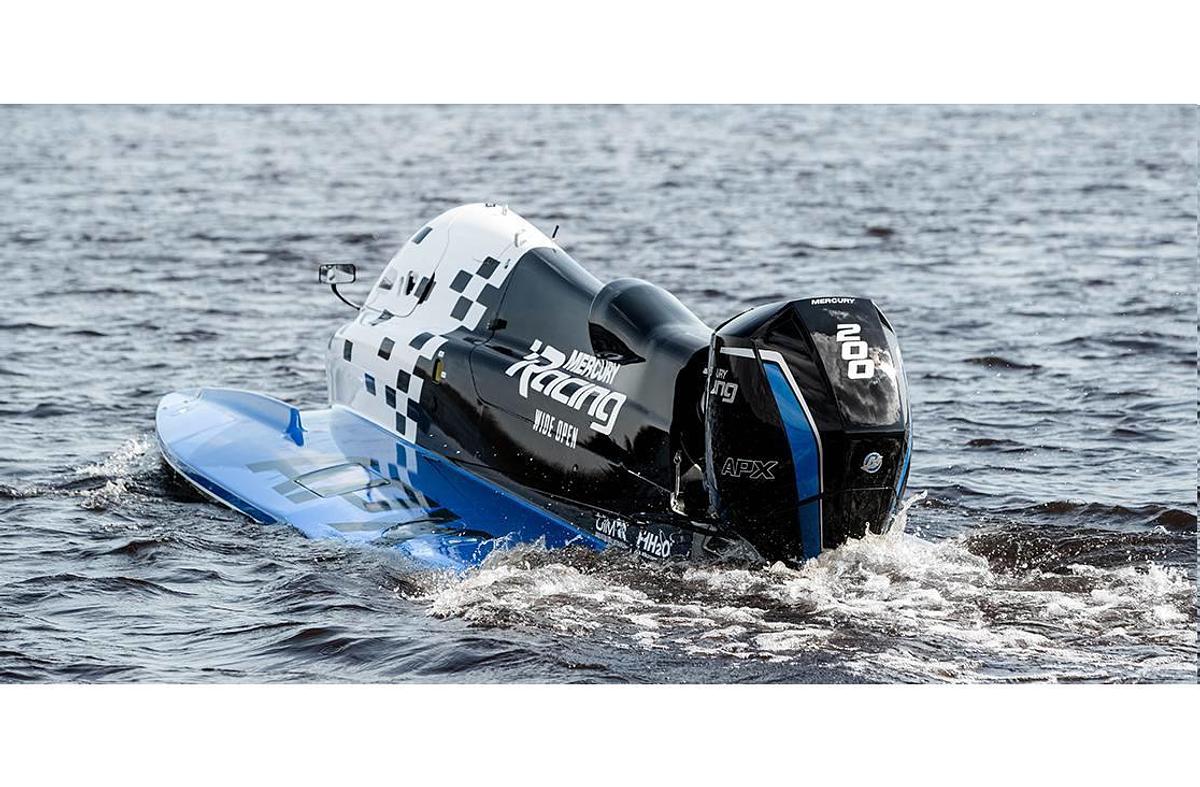

A V6 TO GO!, Rated at more than 200 horsepower, the 200 APX outboard offers tunnel boat racers a very durable powerhead and the latest in four-stroke engine technology in the most-potent V6 outboard package to ever leave the Mercury Racing shop. The 200 APX is designed specifically to do battle on UIM F2 and APBA OPC tunnel boat circuits and international endurance events, where racers run Wide Open for the win.
Key Features
The New Breed: How we make power: A 3.4-liter V6 powerhead and deep-breathing double overhead cam/four-valve architecture is tuned to wind up to 6800 rpm. Compression ratio is boosted to 11:1. A heavy dose of dense, cool air is ducted directly to the intake.An evolved Mercury Racing Super Speed Master (IV SSM) outboard gearcase is direct-drive with no neutral or reverse shifting.90% Lower Exhaust Emissions Than the Legacy Two-Stroke Racing Engines: The four-stroke Mercury Racing 200 APX reduces exhaust emissions by 90 percent compared to a two-stroke racing outboard of similar performance. Unlike those two-stroke motors, the 200 APX will require very little maintenance between races, and is designed to perform on 91-octane (98 RON w/ E10 max) pump fuel.Specifications
Full Throttle RPM: 6800 RPMRated HP: 200 HPCylinders: V6Displacement: 3.4 LIdle RPM: 750Max Trim Range: 13 deg.Lift Range: 26 mmCooling System: Water-Cooled With Thermostat Control And Integrated Pressure ReliefEngine Management System: Competition Spec SmartCraft PCM 112Engine Protection System: SmartCraft Engine Guardian With Competition CalibrationExhaust System: Above WaterLubrication System: Structural Wet Sump With Integrated Baffle SystemOil Capacity: 6.6 LSteering Angle: + 30 deg. / - 30 deg.Overdrive Ratio: 0.818 (22:18)Overall Drive Ratio: 0.927
